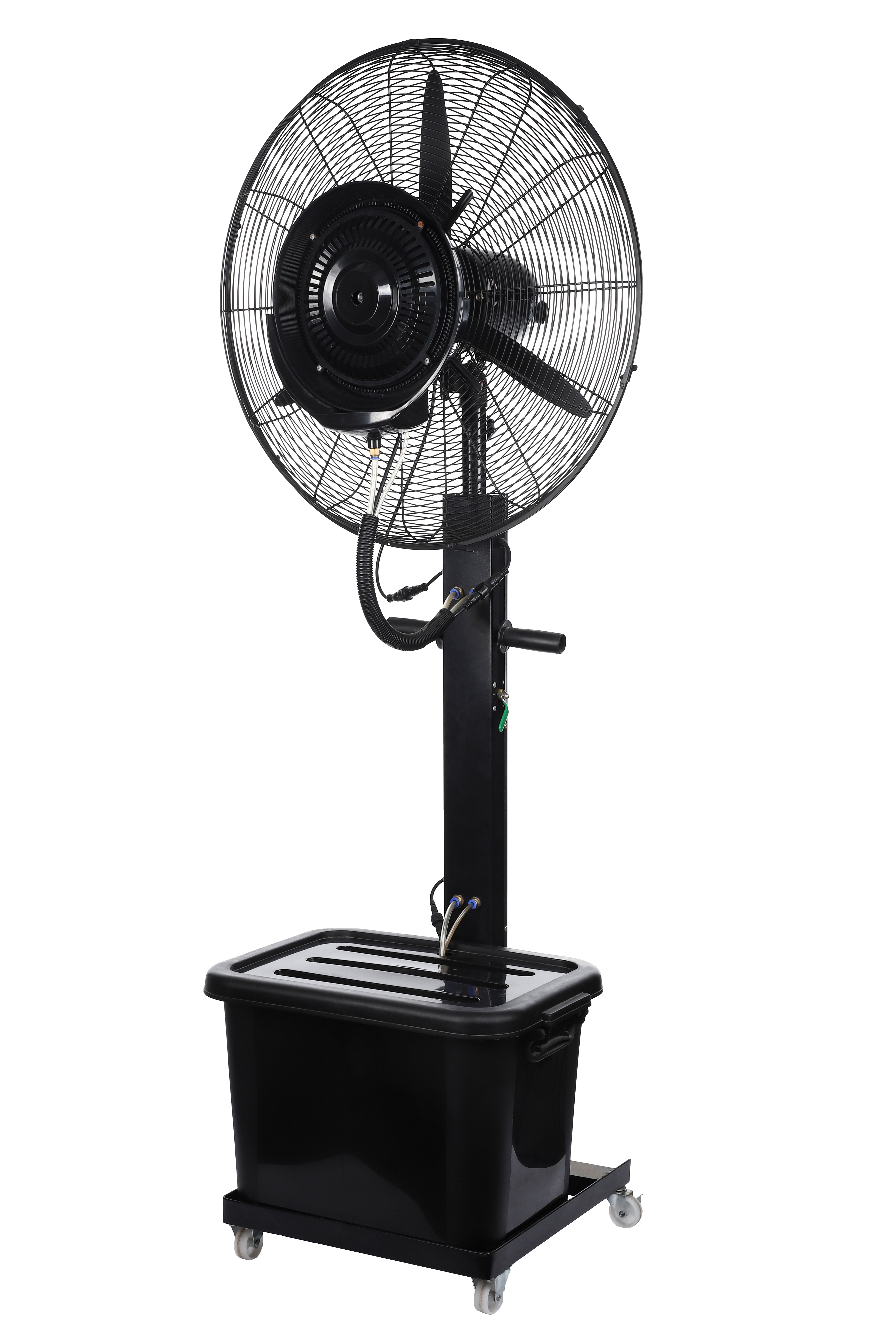

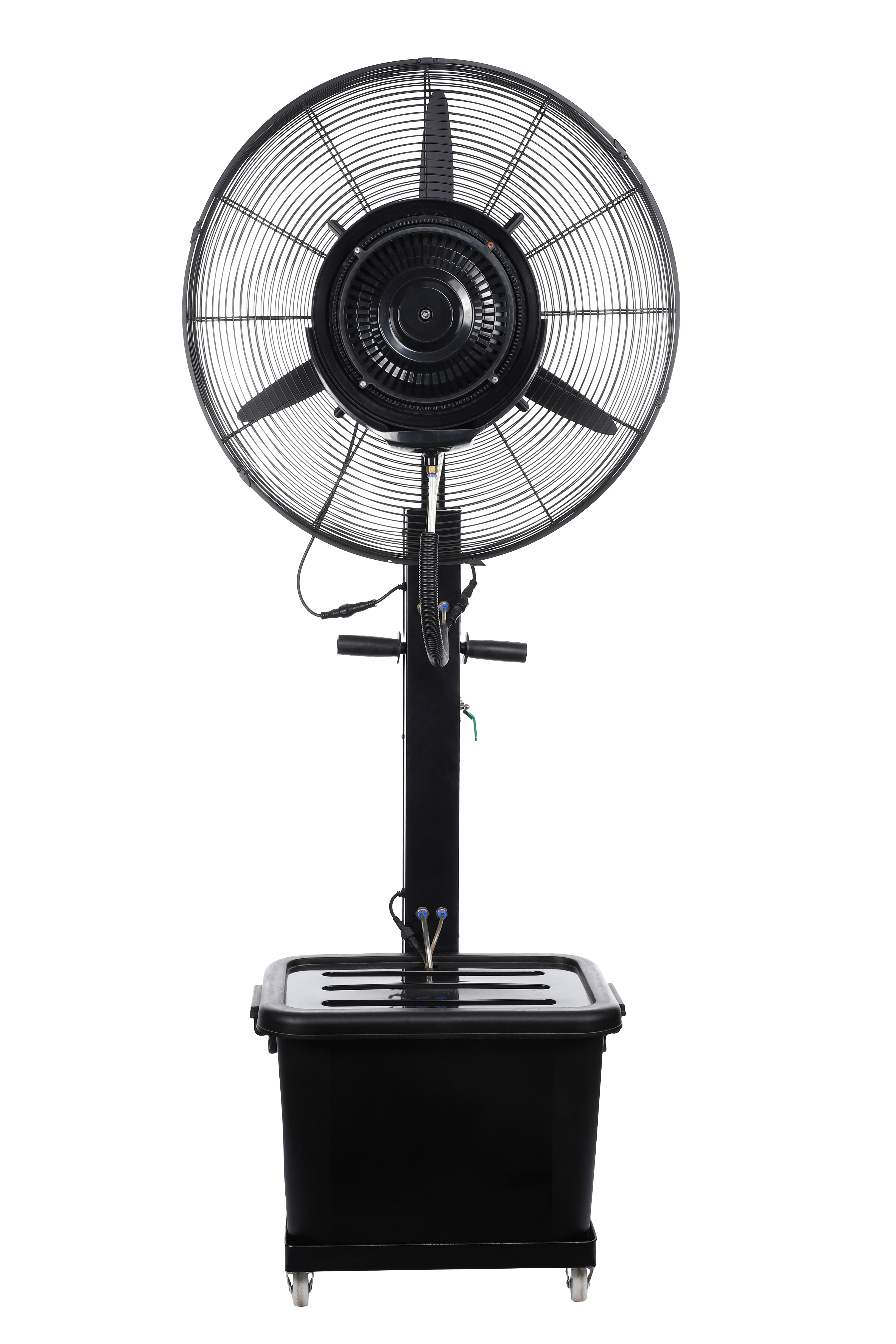

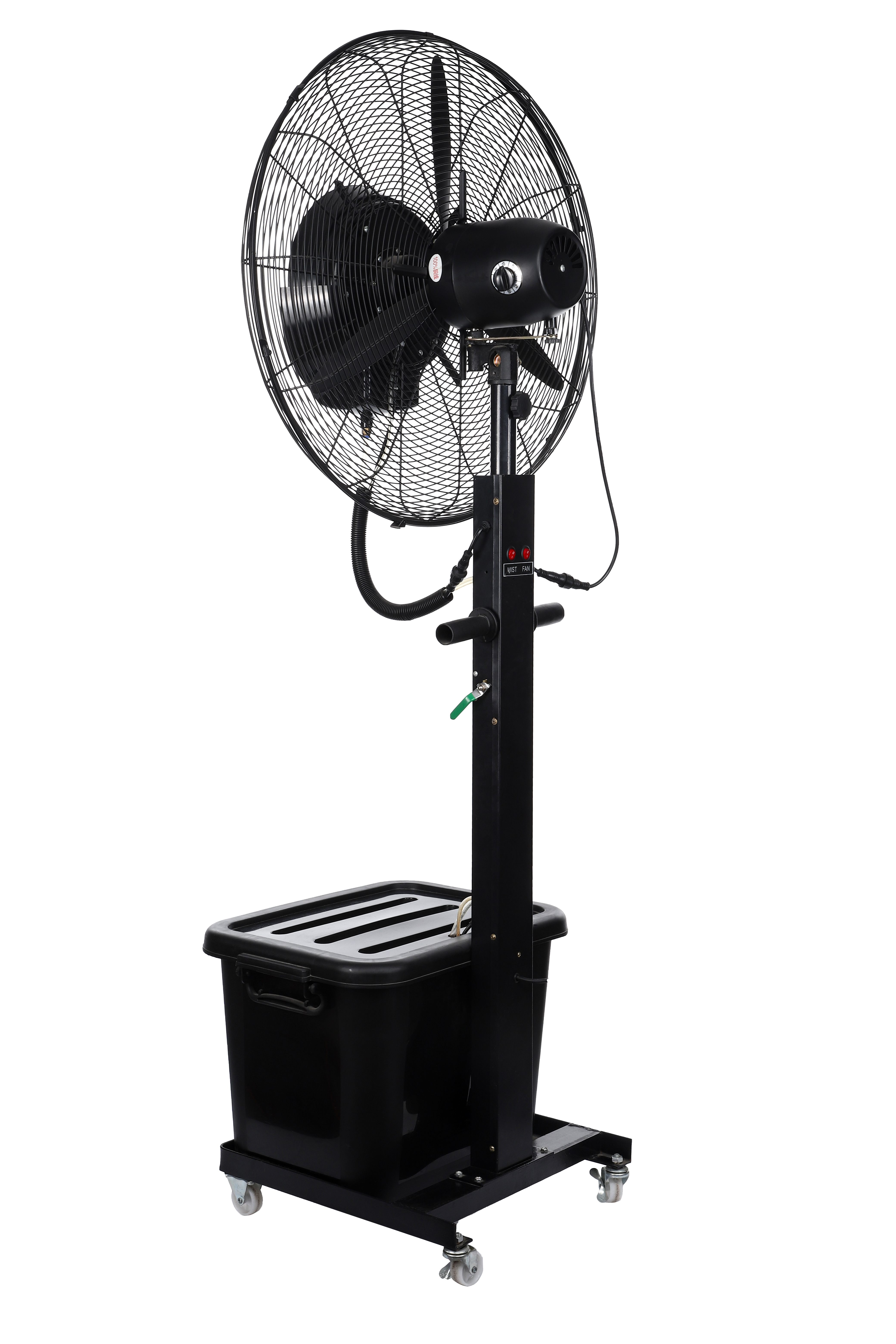

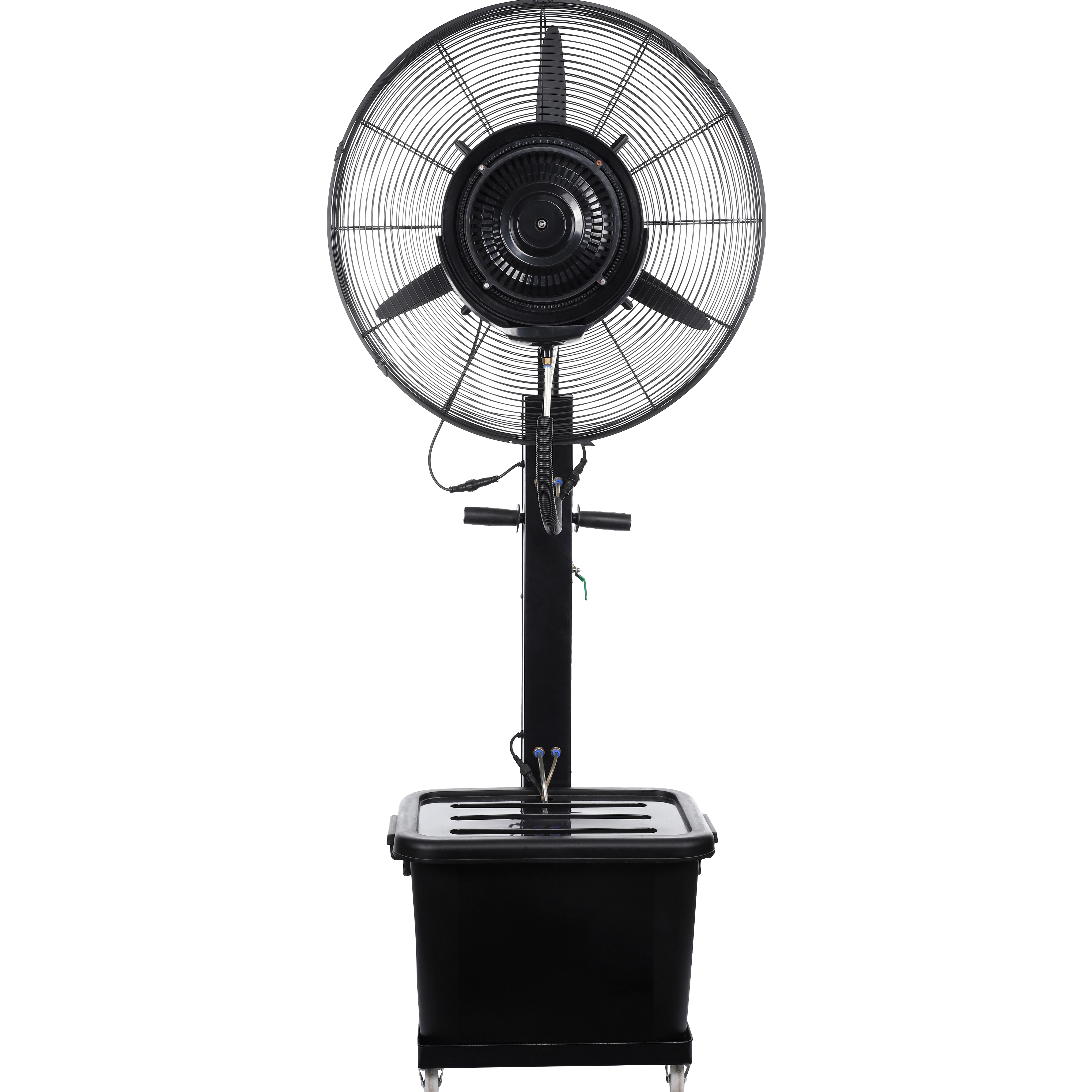

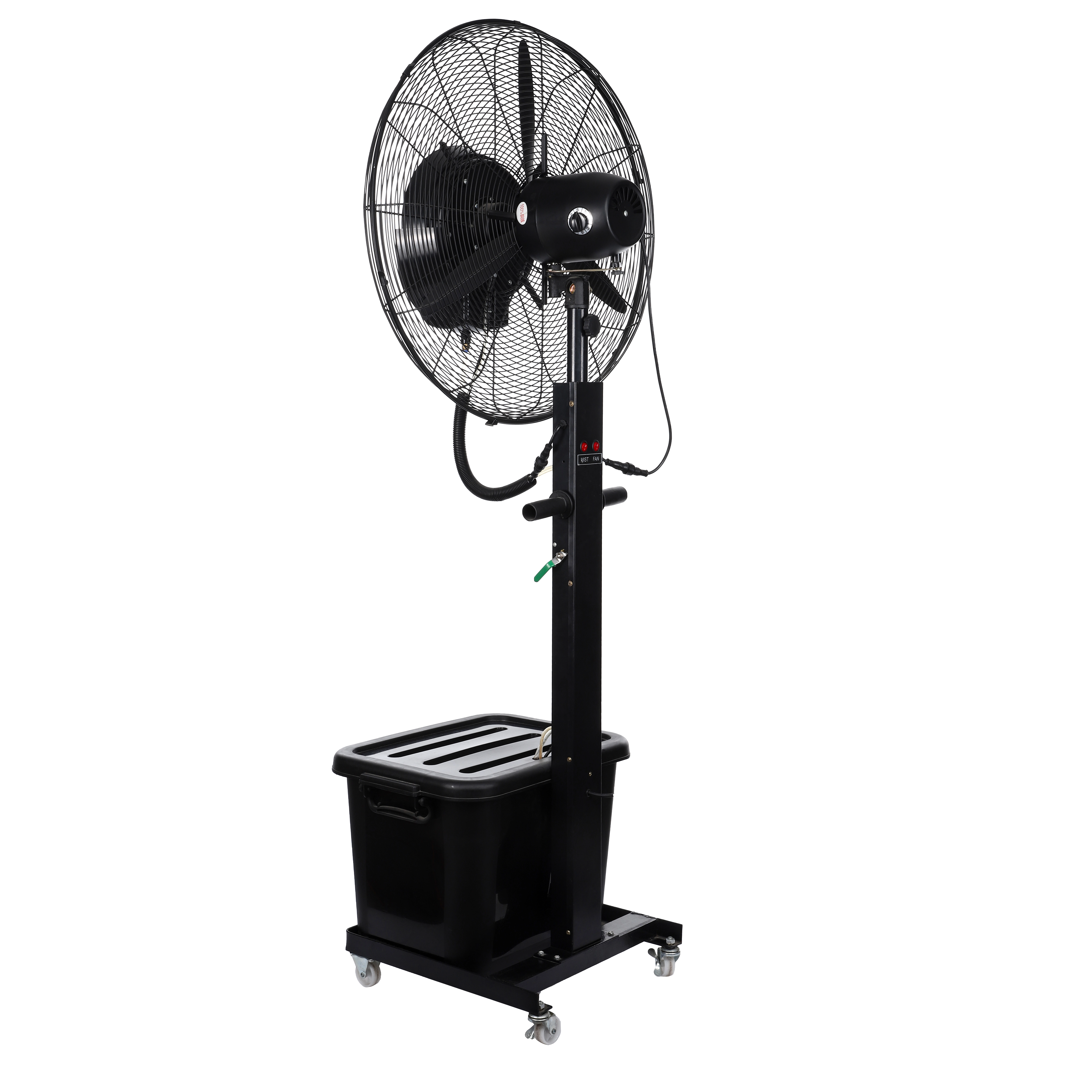

26/30 Inch Industrial Mist Cooling Fan,portable Outdoor Water Miat Fan with Wheels for Patio,factory,warehouse

1. Instructions for Use

1.1 Pre-Operation Preparation

1. Assembly & Inspection: Unpack the fan and check that all parts (base tank, stand pole, fan head, water tube, misting nozzles, power cord) are included and undamaged.

2. Fill the Water Tank:

   • Open the cap on the base tank and fill it with clean, cold water. Do not overfill beyond the marked maximum level.

   • For better mist quality, use filtered water to reduce mineral buildup.

3. Position the Fan: Place the fan on a flat, stable surface. Lock the wheels if equipped. Ensure there is at least 1 meter of clearance around the unit for airflow.

1.2 Operation

1. Power Connection: Plug the power cord into a properly grounded electrical outlet.

2. Fan Function:

   • Use the control panel/switch to select the desired fan speed (Low/Medium/High).

   • Activate the oscillation function (if available) for wide-area air circulation.

3. Misting Function:

   • Turn on the misting pump using the dedicated switch. The fan will begin producing fine water mist.

   • Adjust the mist output if the model allows.

4. Adjustments:

   • Adjust the fan head angle and stand height to direct airflow as needed.

   • Monitor the water level and refill the tank when it runs low.

5. Shutdown: Turn off the mist pump first, then the fan speed control. Unplug the fan when not in use.

2. Important Safety & Usage Precautions

• Electrical Safety

  • Never operate the fan with wet hands, or in areas with standing water, to avoid electric shock.

  • Ensure the power outlet is properly grounded. Do not use extension cords unless rated for the fan’s power consumption.

  • Unplug the fan before filling the tank, cleaning, or performing maintenance.

• Usage Safety

  • Do not direct mist or airflow at electrical outlets, devices, or open flames.

  • Keep hands, hair, and loose clothing away from the fan grille and moving blades.

  • Do not use the fan in enclosed, poorly ventilated spaces for long periods, as excess humidity may form.

  • If the fan leaks water, emits unusual noise, or smells of burning, turn it off immediately and unplug it.

• Water & Environmental Safety

  • Use only clean, cold water. Do not add chemicals, oils, or other additives to the water tank.

  • Do not use the fan in freezing temperatures, as water in the lines may freeze and damage the pump.

  • Empty the water tank after each use to prevent stagnant water and mold growth.

3. Cleaning, Maintenance & Repair

3.1 Cleaning & Maintenance

1. After Each Use:

   • Unplug the fan and empty all water from the tank, lines, and pump.

   • Wipe the fan grille, blades, and exterior with a soft, dry cloth.

   • Clean the water tank with a mild detergent, then rinse and dry thoroughly.

2. Regular Maintenance (Weekly/Monthly):

   • Descale Misting Nozzles: Soak the nozzles in a vinegar-water solution to dissolve mineral deposits, then rinse. Clogged nozzles will reduce mist output.

   • Clean the Pump: Remove and clean the pump filter to prevent debris buildup.

   • Tighten Fittings: Check and tighten all water tube connections to prevent leaks.

   • Lubricate (if needed): The fan motor bearings are usually pre-lubricated. Do not oil unless specified in the manual.
