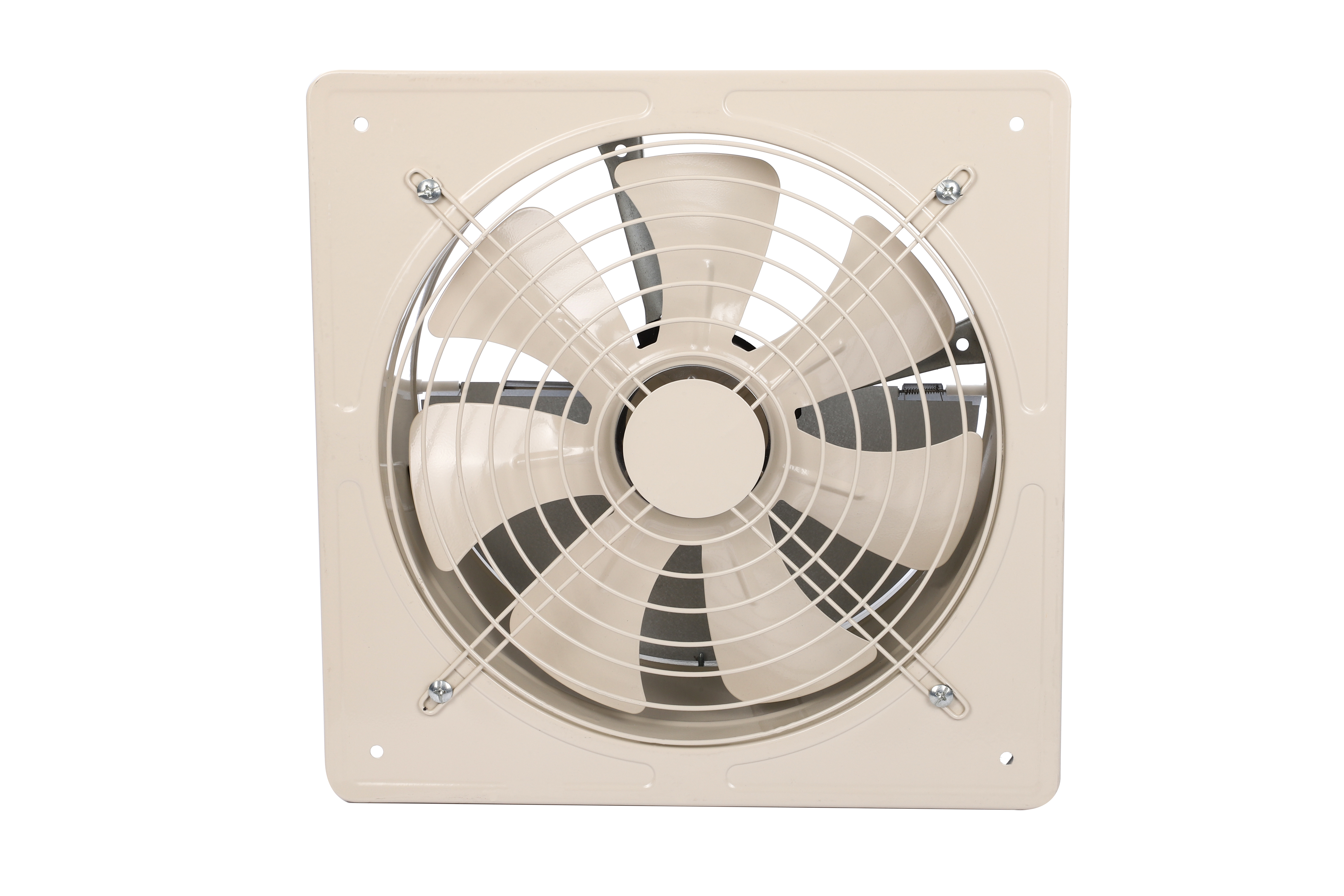

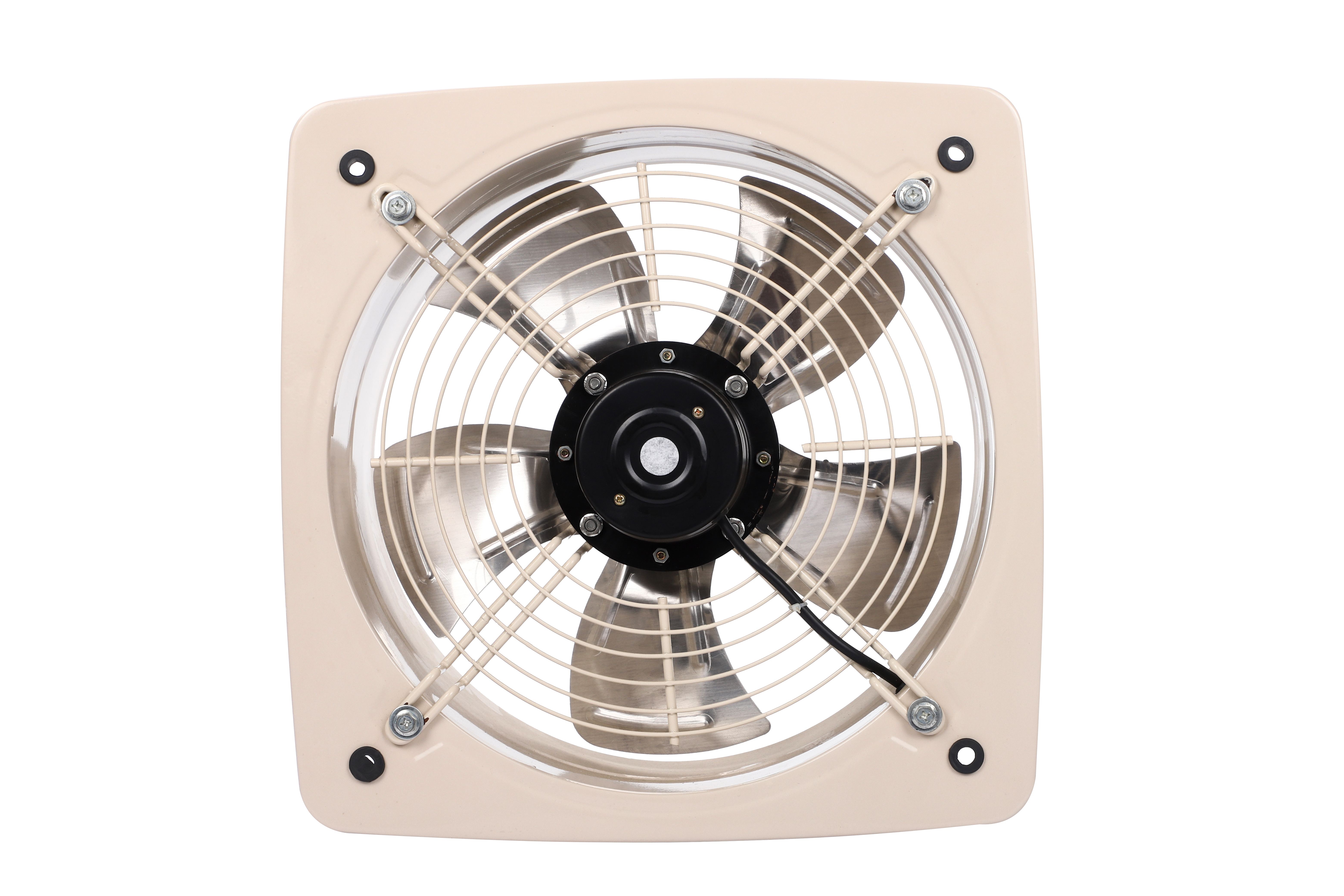

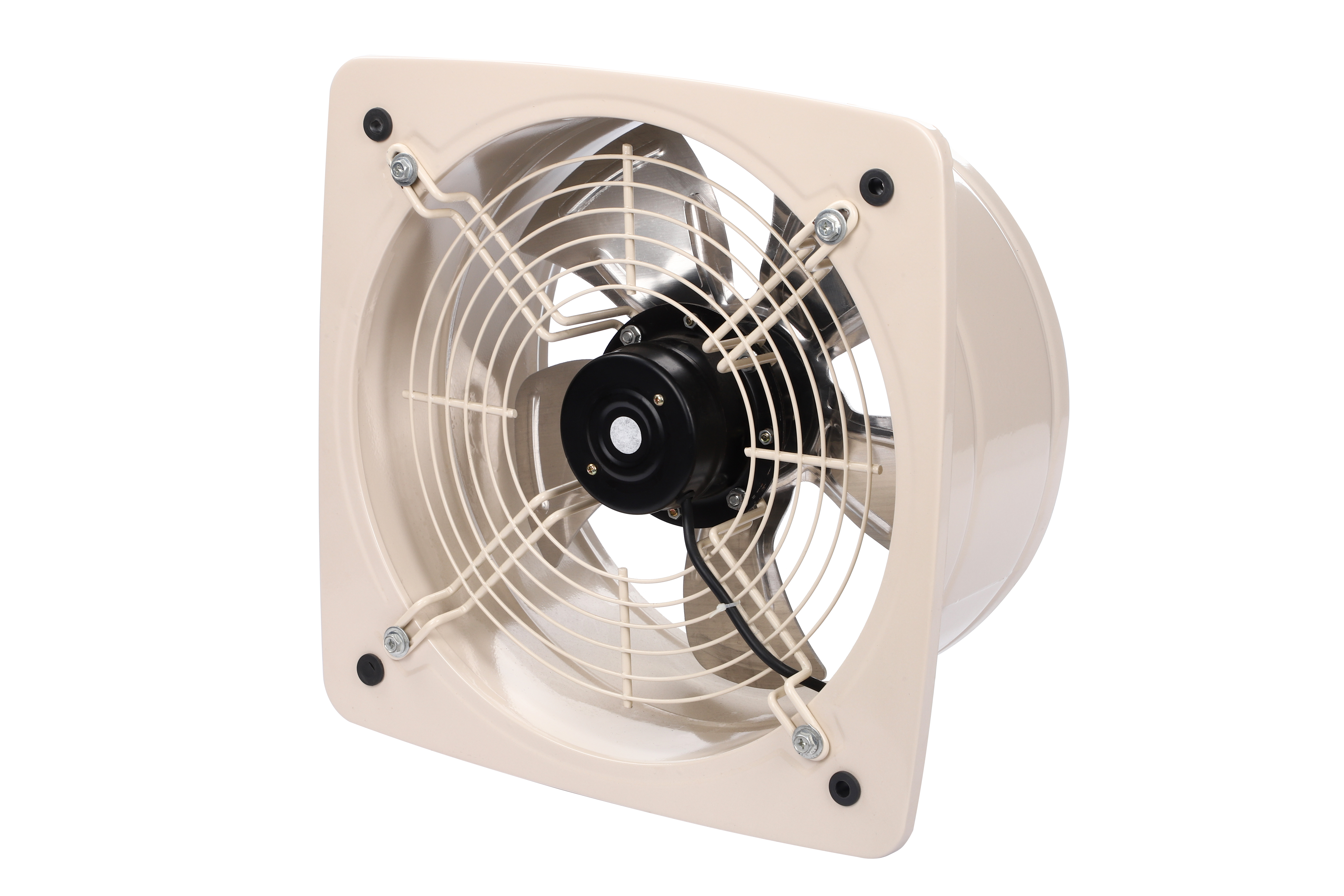

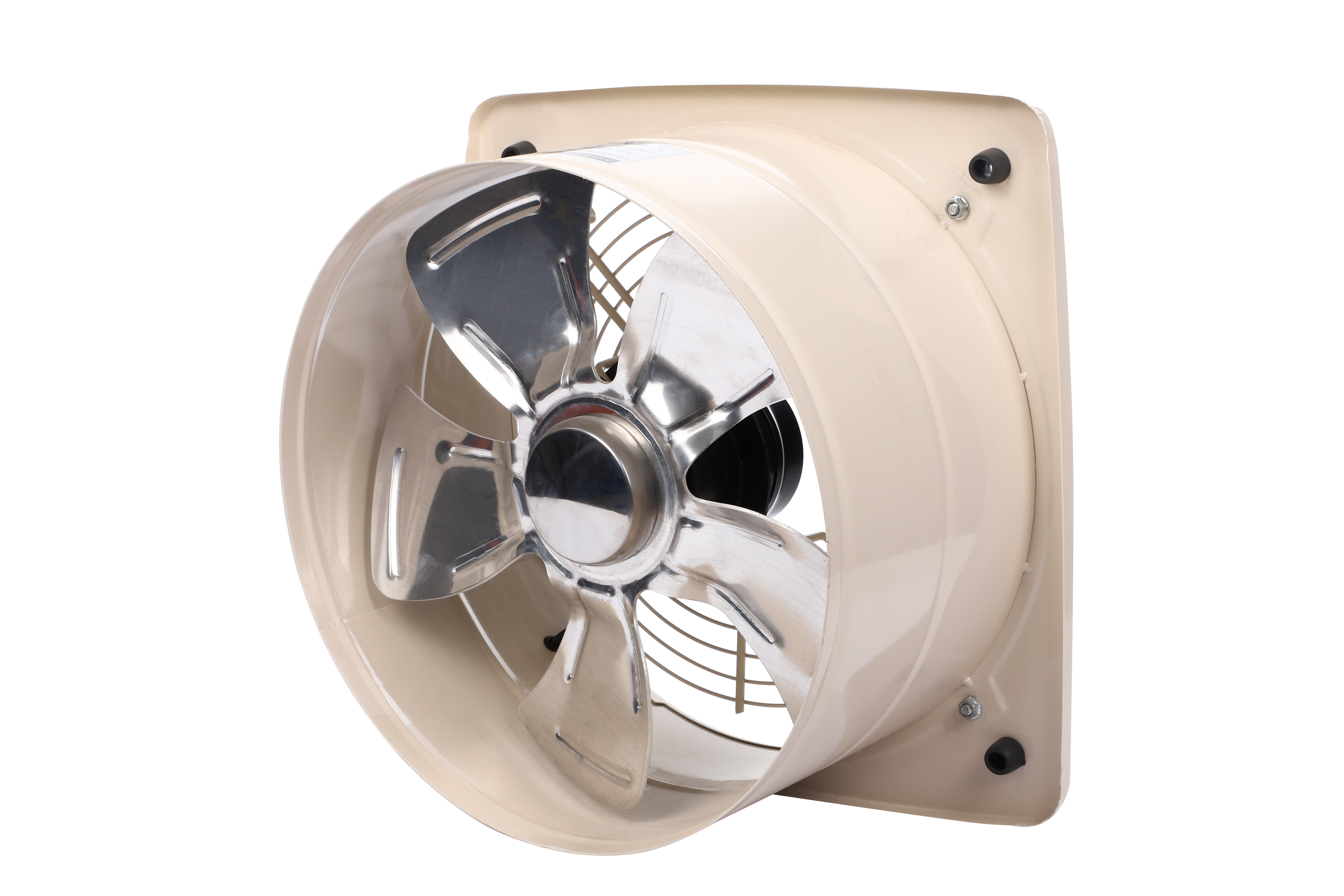

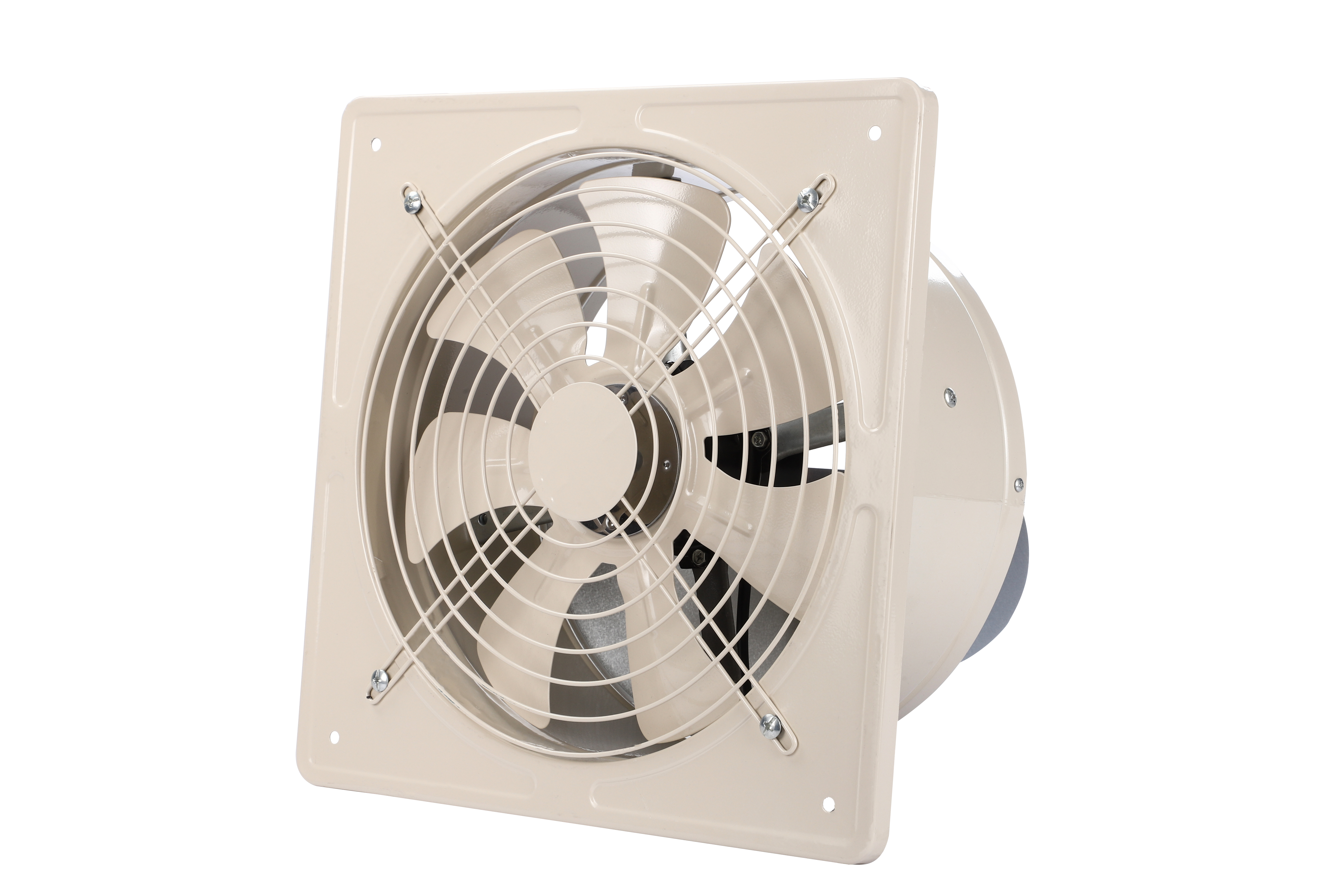

10/12/14/16 Inch Square Industrial Exhaust Fan,stainless Steel Blades Wall-mounted Exhaust Ventilation Fan for Kitchen,bathroom,garage

1. Instructions for Use

1.1 Installation

1. Safety First: Turn off the main power supply at the circuit breaker before starting installation.

2. Cut the Opening: Create a suitable opening in the wall or window matching the fan’s dimensions.

3. Mount the Fan:

   • Place the fan into the opening, ensuring it fits securely.

   • Use the mounting holes on the square frame to screw the fan firmly to the wall or window surface.

4. Wiring:

   • Connect the fan’s power wires to a properly grounded electrical circuit, following local electrical codes.

   • Install a dedicated on/off switch (if not built-in) for easy operation.

5. Test Run: Restore power to confirm the fan operates smoothly and exhausts air in the correct direction.

1.2 Operation

1. Power On: Turn on the dedicated switch to start the fan. The unit will begin exhausting air out of the room.

2. Adjust Operation: If the fan has speed settings, select the desired speed (Low/High) based on your ventilation needs.

3. Shutdown: Turn off the power at the switch when the fan is not in use, or before cleaning/maintenance.

2. Important Safety & Usage Precautions

• Electrical Safety

  • Always disconnect power before installing, cleaning, or servicing the fan.

  • Ensure the power supply voltage matches the fan’s rated voltage.

  • The fan must be properly grounded to prevent electric shock hazards.

  • Do not operate the fan if the power cord is damaged, frayed, or exposed.

• Installation Safety

  • The fan must be securely mounted to prevent loosening or falling due to vibration.

  • Ensure there is no blockage on both the intake (indoor) and exhaust (outdoor) sides of the fan.

  • If installed in a kitchen, avoid positioning the fan directly above high-heat cooking surfaces to prevent grease buildup or fire risks.

• Usage Safety

  • Never insert fingers, tools, or other objects through the safety grille while the fan is running.

  • Do not use the fan to exhaust flammable, corrosive, or explosive gases unless it is rated for hazardous environments.

  • If the fan emits unusual noise, smoke, or a burning smell, turn it off immediately and disconnect power.

3. Cleaning, Maintenance & Repair

3.1 Cleaning & Maintenance

1. Regular Cleaning:

   • Disconnect power and wait for the blades to stop completely.

   • Use a soft brush or dry cloth to clean dust, grease, and debris from the grille, blades, and frame.

   • For stubborn grease buildup (e.g., kitchen use), use a slightly damp cloth with a mild detergent. Never immerse the motor housing in water.

2. Preventative Maintenance:

   • Every 3–6 months, inspect and tighten all mounting screws and grille fasteners to prevent loosening from vibration.

   • Check the power cord for signs of wear, fraying, or damage.

   • The motor bearings are pre-lubricated and sealed; do not attempt to oil them unless specified in the manufacturer’s instructions.
